As a seasoned supplier of solar water pumps, I understand the challenges that winter brings, especially the risk of freezing. Freezing can cause significant damage to solar water pumps, leading to costly repairs and disruptions in water supply. In this blog post, I'll share some effective strategies to prevent your solar water pump from freezing during the cold winter months.
Understanding the Freezing Risk
Before diving into prevention methods, it's crucial to understand why solar water pumps are at risk of freezing. Water expands when it freezes, and this expansion can exert immense pressure on the pump components, including pipes, valves, and the pump housing itself. This pressure can cause cracks, leaks, and even complete failure of the pump.
The risk of freezing is higher in regions with sub - zero temperatures, but it can also occur in milder climates if the pump is exposed to cold winds or if water is left stagnant in the system for extended periods.
Insulation: A First Line of Defense
One of the most effective ways to prevent a solar water pump from freezing is through proper insulation. Insulation helps to maintain the temperature of the pump and the water inside it, reducing the likelihood of freezing.
- Insulating the Pump Housing: You can use insulating materials such as foam sleeves or blankets specifically designed for water pumps. These materials are easy to install and can provide a significant amount of thermal protection. Wrap the insulation around the pump housing, making sure to cover all exposed areas.
- Insulating Pipes: Insulating the pipes connected to the solar water pump is equally important. Use pipe insulation sleeves made of foam or rubber. Pay special attention to pipes that are exposed to the elements, especially those running above ground or in unheated areas. For pipes in crawl spaces or basements, consider adding additional insulation to prevent cold air from reaching them.
Drainage: Removing Stagnant Water
Stagnant water in the pump and pipes is more likely to freeze than flowing water. Therefore, proper drainage is essential to prevent freezing.
- Draining the Pump: Before the onset of winter, drain the water from the solar water pump. Most pumps have a drain valve that can be opened to allow the water to flow out. Make sure to follow the manufacturer's instructions for draining the pump to avoid any damage.
- Draining Pipes: Similarly, drain the water from all connected pipes. This may involve opening valves at the lowest points of the pipe system to allow the water to drain completely. If your pipes have a slope, ensure that the water can flow freely towards the drain points.
Heat Tracing: Adding External Heat
In extremely cold climates, insulation and drainage may not be enough to prevent freezing. Heat tracing is a solution that involves adding a heating element to the pump and pipes to keep them warm.
- Self - Regulating Heat Trace Cables: These cables are designed to adjust their heat output based on the ambient temperature. They can be wrapped around the pump housing and pipes, providing a consistent source of heat to prevent freezing. Install the heat trace cables according to the manufacturer's instructions, and make sure they are properly secured.
- Thermostatic Control: To ensure energy efficiency, use a thermostatic control with the heat trace cables. The thermostat can be set to turn on the heating element when the temperature drops below a certain level and turn it off when the temperature rises.
Location: Choosing the Right Spot
The location of the solar water pump can also affect its susceptibility to freezing.
- Indoor Installation: If possible, install the solar water pump indoors or in a heated enclosure. This provides a stable environment with a higher temperature, reducing the risk of freezing. An indoor installation also protects the pump from other weather - related damage.
- Avoiding Low - Lying Areas: Do not install the pump in low - lying areas where cold air can accumulate. Cold air tends to sink, and areas with poor air circulation are more likely to experience freezing conditions. Choose a location that is well - ventilated and away from cold drafts.
Using Antifreeze: A Temporary Solution
In some cases, using antifreeze can be a temporary solution to prevent freezing. However, it's important to use antifreeze that is safe for use in water systems.
- Food - Grade Antifreeze: Look for food - grade antifreeze that is non - toxic and safe for use with drinking water. Mix the antifreeze with water according to the manufacturer's instructions and add it to the pump and pipes. This can lower the freezing point of the water and provide some protection against freezing.
- Limitations of Antifreeze: Keep in mind that antifreeze is not a long - term solution and may need to be replaced regularly. It can also be expensive and may have environmental implications if not disposed of properly.
Regular Maintenance: Keeping the Pump in Good Shape
Regular maintenance of the solar water pump is essential to ensure its proper functioning and to prevent freezing.
- Checking Seals and Gaskets: Inspect the seals and gaskets on the pump regularly. Damaged seals can allow cold air to enter the pump, increasing the risk of freezing. Replace any worn or damaged seals promptly.
- Lubricating Moving Parts: Lubricate the moving parts of the pump, such as bearings and shafts. Proper lubrication helps to ensure smooth operation and can also prevent parts from freezing due to friction.
- Testing the Pump: Periodically test the solar water pump during the winter months to make sure it is working properly. This can help you detect any potential problems early and take corrective action before they lead to freezing or other damage.
Monitoring: Keeping an Eye on the Temperature
Monitoring the temperature of the solar water pump and its surroundings is crucial to prevent freezing.
- Using Temperature Sensors: Install temperature sensors near the pump and in critical areas of the pipe system. These sensors can provide real - time temperature readings, allowing you to take action if the temperature drops below a safe level.
- Remote Monitoring: Consider using a remote monitoring system that allows you to check the temperature and other parameters of the solar water pump from a distance. This can be especially useful if you are away from the location or if the pump is installed in a hard - to - reach area.
Conclusion
Preventing a solar water pump from freezing in winter requires a combination of strategies, including insulation, drainage, heat tracing, proper location, and regular maintenance. By taking these steps, you can protect your pump from damage and ensure a reliable water supply throughout the winter months.

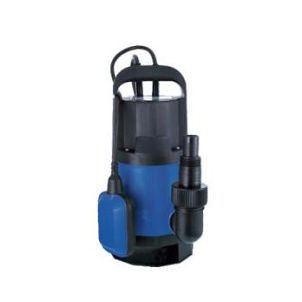

At our company, we offer a wide range of high - quality solar water pumps, including 4 10 Hp Submersible Sewage Pump, Cast Iron Garden Pump, and Stainless Steel Centrifugal Water Pumps. If you have any questions about preventing your solar water pump from freezing or if you are interested in purchasing a new pump, please don't hesitate to contact us for a procurement discussion.
